Home > Products > Rebar Mechanical Equipment > Steel Bar Straightening And Cutting Machine > CNC steel rebar straightening and cutting off machine
CNC steel rebar straightening and cutting off machine
CNC steel rebar straightening and cutting off machine
CNC steel rebar straightening and cutting off machine
  • CNC steel rebar straightening and cutting off machine
  • CNC steel rebar straightening and cutting off machine
  • CNC steel rebar straightening and cutting off machine

CNC steel rebar straightening and cutting off machine

    Min. Order: 1 Others

Additional Info

Transportation: Ocean

Place of Origin: HeBei of China

Product Description

Maintenance and lubrication


1. Clean all parts of dust, debris and rust in time to prevent oil from rust.

2. Always check whether the oil level in the machine cavity is above the oil mark.

3. If the machine stops working for a long time, the motor needs to be removed.

4. After the first refueling, the new oil should be replaced after one month. After 6 months, the bearing should be added with calcium grease (butter).




Product description

The fully automatic CNC hydraulic bar Straightening Cutting Machine is a machine used for straightening and rebaring of steel bars on construction sites. It is suitable for straightening and cutting of ordinary disc snails on construction sites, steel processing shops, etc. Equipped with a computer numerical control panel, easy to operate and agree to get started. This shop has a variety of models, please contact customer service for details.



Precautions for use

1. The steel bar must be cut at the middle and lower part of the tool. If it is not necessary, the upper part of the tool should not be used to avoid excessive fatigue of the tail of the machine.

2. When the shape of the fixed blade is rectangular (84x70mm/90x74mm) and the steel bar of φ32mm/38mm or less is cut, the long edge is used as the cutting edge. When cutting steel bars of φ32mm/38mm or more, use the short side to make the cutting edge, and pay attention to check whether the blade is loose during use. After the blade edge is chipped, the tool should be changed or replaced with a new one in time to avoid the cutting resistance increasing after the blade is blunt and damage Other parts. (The position where the fixed blade is cut below φ32mm/38 when the machine is shipped from the factory)

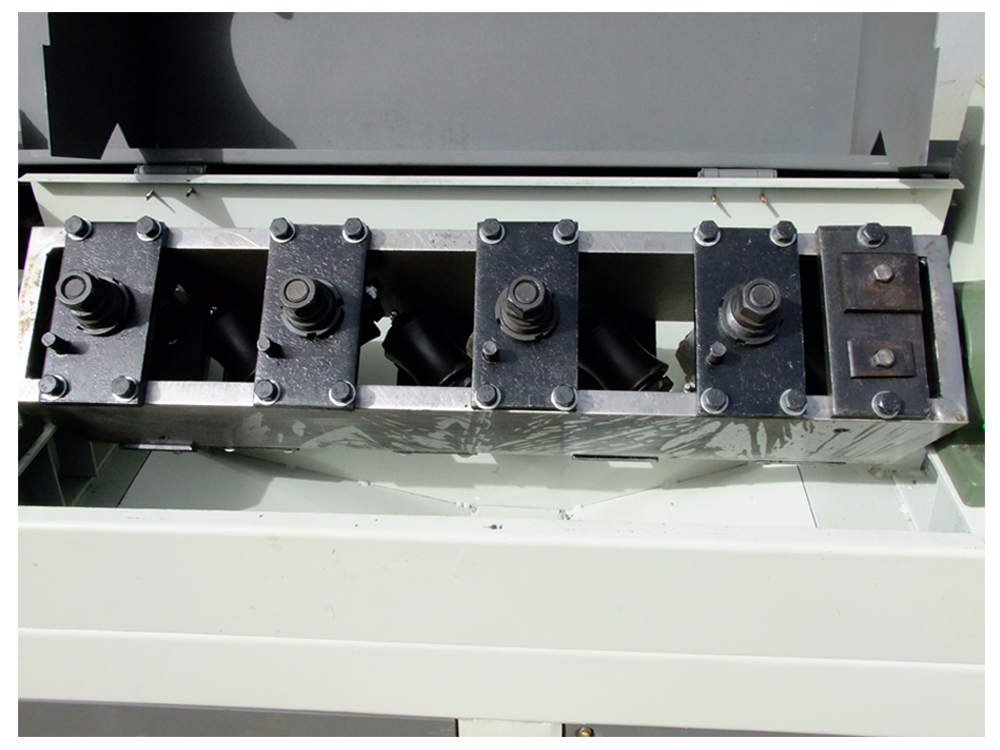

Steel bar straightening and cutting machine detail

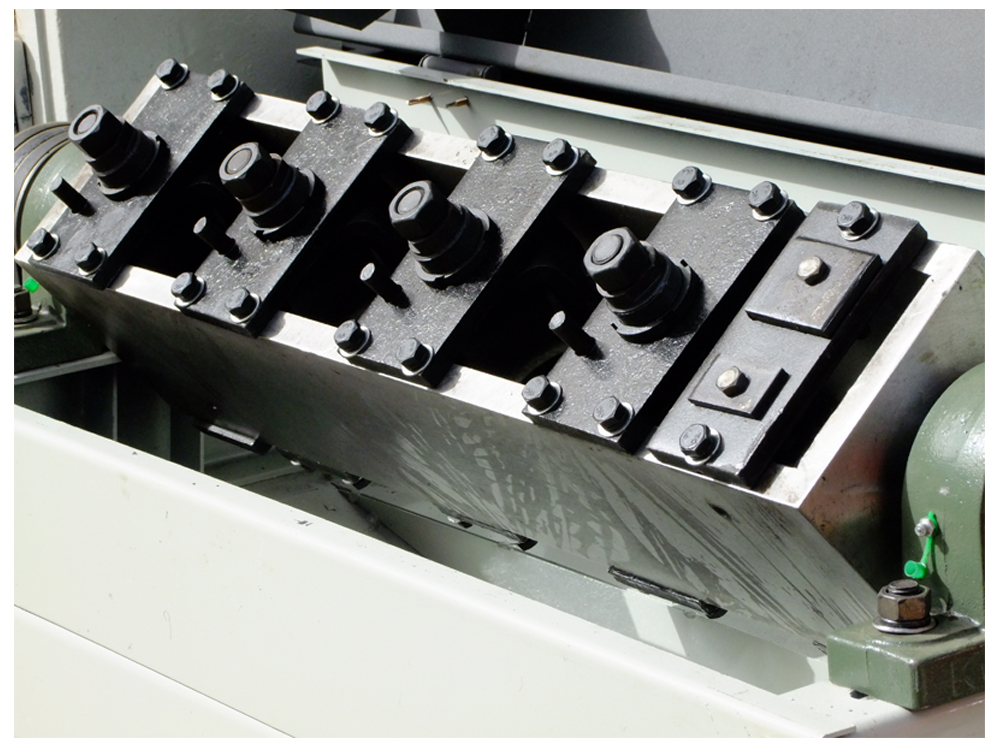

Steel bar straightening and cutting machine detail

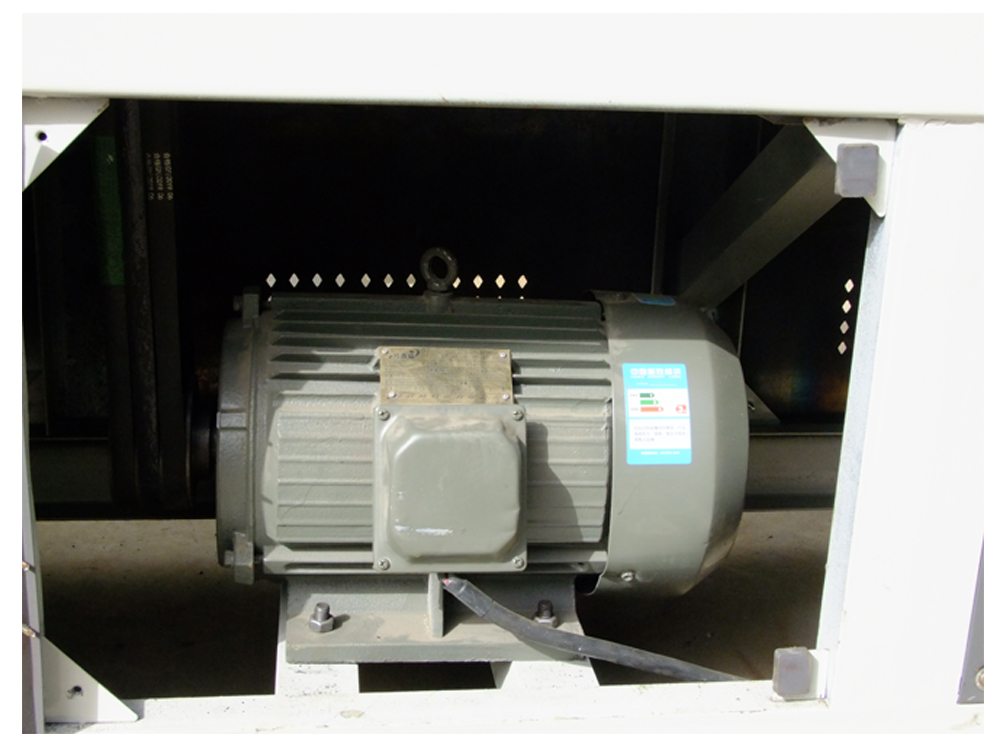

Steel bar straightening and cutting machine detail

Steel bar straightening and cutting machine detail


Technical parameter


Straightening diameter range

Φ4-Φ14mm

Straightening speed

55m/min

Cut length error

±5mm

Traction motor

11KW

Cut off the motor

5.5KW

Cut length

30cm-9900cm

Total Weight

900kg

Dimensions

2800×700×1100mm







Looking for ideal Straightening Cutting Machine High Quality Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cnc Steel Cutting Machine High Quality are quality guaranteed. We are China Origin Factory of CNC Steel Bar Straightening Machine. If you have any question, please feel free to contact us.
