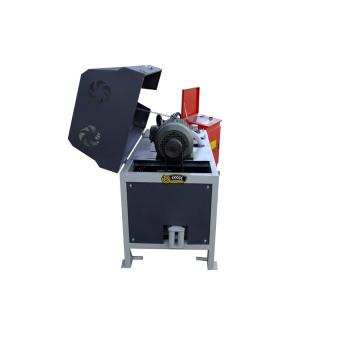

High Speed Cutting Machine

Payment Type:
T/T,Paypal
Incoterm:
FOB,CFR,CIF,EXW
Min. Order:
1 Set/Sets
Transportation:
Ocean
Port:
Tianjin
Share:
  • Product Description
Overview
Product Attributes

Model No.YGT4-12

BrandBorong

Old And NewNew

Whether CNCYes

Place Of OriginChina

CertificationIso, Iso 9001:2008

Core Selling PointLow Maintenance Cost

Warranty Period1 Year

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Applicable IndustryConstruction Works

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Mechanical Test ReportProvided

Video Factory InspectionProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Suitable ForOther

AutomationAutomatic

Total Weight700kg

Cut Length Error±5mm

Straightening Diameter RangeΦ4-Φ12mm

Straightening Speed50m/Min

Traction Motor9kw

Cut Off The Motor4kw

Cut LengthCut Length30cm-9900cm

Dimensions2400×680×1300mm

Supply Ability & Additional Information

PackagingWooden box

Productivity100 sets per month

TransportationOcean

Place of OriginHeBei of China

Supply Ability100 sets per month

PortTianjin

Payment TypeT/T,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Wooden box

Product features:
   1. Adopt adjustable speed traction to ensure the reliability of feeding and avoid scratching or damage of steel bars.
   2. Using a programmer that can control the straightening and cutting process, it can memorize 20 different lengths and different sizes of steel equipment at one time, and all the batch settings can be completed on the digital display, which is simple and quick.
   3. Modulation wheel, square blade and circular blade have high-quality alloy steel support with heat treatment (quenching), which can work under heavy load and has long service life.


Precautions for use


    1. The steel bar must be cut at the middle and lower part of the tool. If it is not necessary, the upper part of the tool should not be used to avoid excessive fatigue of the tail of the machine.

   2. When the shape of the fixed blade is rectangular (84x70mm/90x74mm) and the steel bar of φ32mm/38mm or less is cut, the long edge is used as the cutting edge. When cutting steel bars of φ32mm/38mm or more, use the short side to make the cutting edge, and pay attention to check whether the blade is loose during use. After the blade edge is chipped, the tool should be changed or replaced with a new one in time to avoid the cutting resistance increasing after the blade is blunt and damage other parts. (The position where the fixed blade is cut below φ32mm/38 when the machine is shipped from the factory)



Product description

       The fully automatic CNC hydraulic bar straightening cutting machine is a machine used for straightening and rebaring of steel bars on construction sites. It is suitable for straightening and cutting of ordinary disc snails on construction sites, steel processing shops, etc. Equipped with a computer numerical control panel, easy to operate and agree to get started. This shop has a variety of models, please contact customer service for details.



Steel bar straightening and cutting machine detail


Steel bar straightening and cutting machine detail



Steel bar straightening and cutting machine detail


Steel bar straightening and cutting machine detail


Steel bar straightening and cutting machine detail



Technical parameter



Straightening diameter range

Φ4-Φ12mm

Straightening speed

50m/min

Cut length error

±5mm

Traction motor

9KW

Cut off the motor

4KW

Cut length

30cm-9900cm

Total Weight

700kg

Dimensions

2400×680×1300mm

As a professional machinery manufacturer, we do have different kinds of construction machinery. Thread Rolling Machine For Sale, contact me if you need it. We will offer you a reasonable Roll Thread Machine Price and best Thread Rolling Services. Besides this Z28-80, we do have Z28-200 Type Thread Rolling Machine, they are both High Speed Thread Rolling MachineAlso we have Steel Straightening Machine, Rebar Bending Hoop Machine, Hydraulic Concrete Converying Transport Pump, and so on. The most important, it can be customized according to various needs.
